Complete Electrical Sub Station Solution
Whether 11kV or 33kV Distribution Substation, we provide total solution of Design, Manufacture, Supply & Installation Solution that extends upto services & modification projects too…

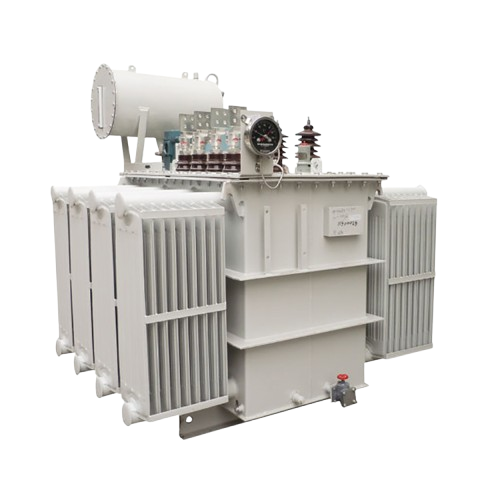

11kV Distribution Substation
Voltage Rating: 11kV/0.415kV.
kVA Rating: 100kVA upto 3000kVA.
Ampere Rating: upto 4170A.
Standards: IEC – 76/1, BS – 171, BNBC 2020.
Phase: 3 Phase.
Frequency: 50Hz.
Usage: Residential, Factory, Construction Site.

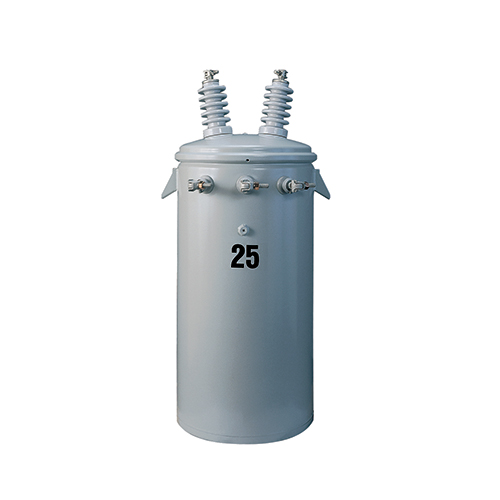

11kV Small Substation
Voltage Rating: 6.35kV/0.24kV.
kVA Rating: 5 kVA upto 167 kVA.
Ampere Rating: upto 230A.
Standards: IEC – 76/1, BS – 171, BNBC 2020.
Brands Offered: Energypac, Vicar, TS, SETB.
Phase: Single Phase, 50Hz.

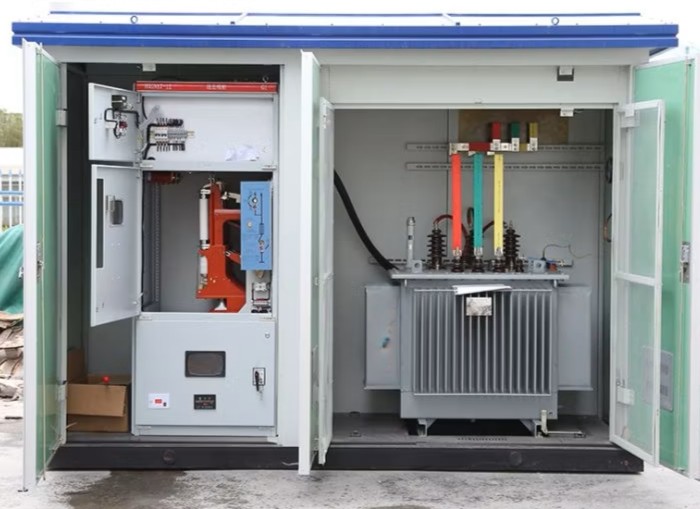

Compact Box-Type Substation
Voltage Rating: 11kV/0.415kV.
kVA Rating: 250 kVA upto 1600 kVA.
Protection Rating: IP55, Rainproof. Installed on a RCC Base.
Standards: IEC – 76/1, BS – 171, BNBC 2020.
Material: Metal sheet.
Structure: Compact, moveable & reusable.

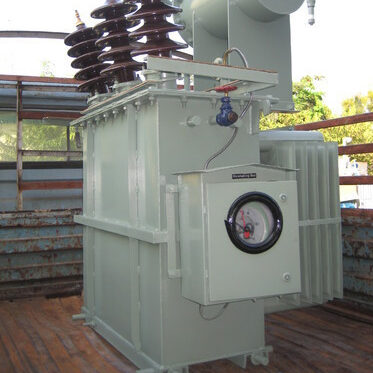

33kV Substation
Voltage Rating: 33kV/11kV/0.415kV.
kVA Rating: 2500 kVA upto 5 MVA.
Switchgear Rating: Customized.
Standards: IEC – 76/1, BS – 171, BNBC 2020.
Phase: 3 Phase, 50Hz, OLTC, Bucholze Relay.
Additives: Complete installations, Cable termination, metering.
